MW|MP Wall-mounted Server Rack
MW/MP Server Rack, Dateup, server rack, mw, mp
查詢報價
相關方案
Key Features
MW/MP Wall Mount Series
Adjustable installation depth
Optional Metal cable management
Removable side panels for easy access
Welded frame structure (70KG Load)
Small round safety lock system
UL & ROHS Compliant
Technical Details
| Materials | SPCC cold rolled steel |
| Structure | Welded frame |
| Lock Type | Small round lock |
| Cable Management | Optional metal cable management |
| Surface Finish | Degreasing, Silanization, Electrostatic spray |
| Side Panels | Removable (Easy install/maintain) |
Loading & Thickness
| Component Part | Thickness |
|---|---|
| Mounting Profile | 2.0 mm |
| Other Components | 1.2 mm |
Static Loading Capacity: 70 KG
Model Specifications
| Model No. | Front Door Description |
|---|---|

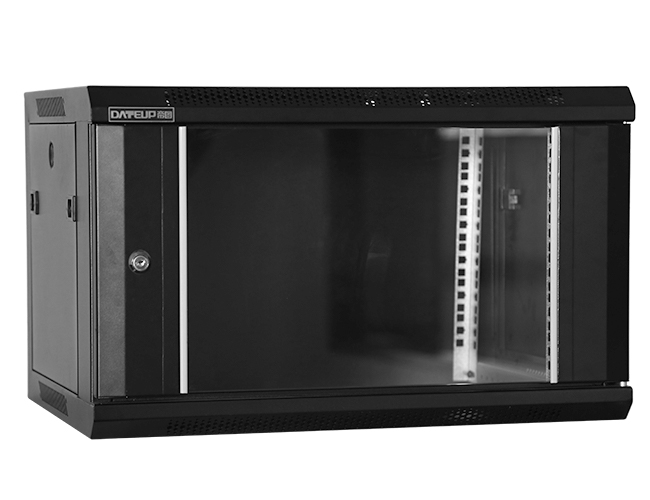

| MW/MP.6■.90■■ | Glass door (Standard border) |
| MW/MP.6■.91■■ | Glass door (Vented arc border) |

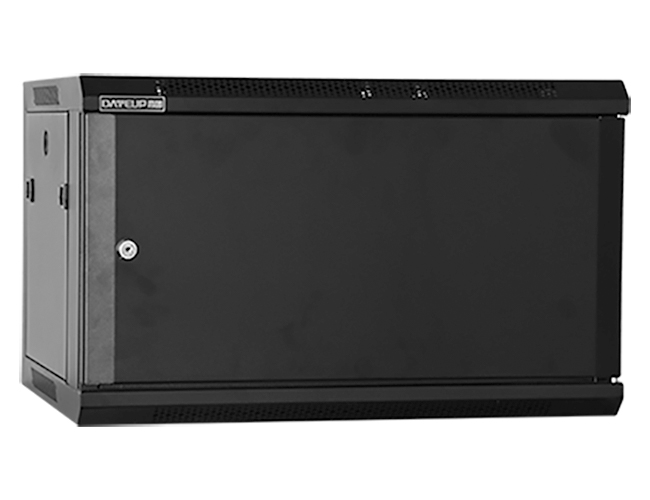

| MW/MP.6■.92■■ | Plate steel door |

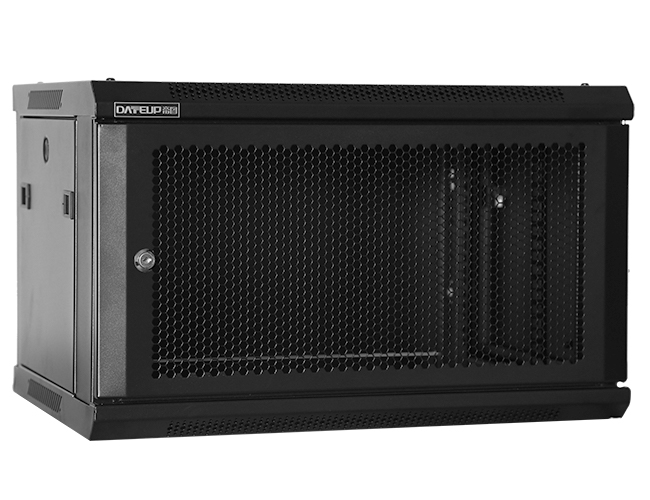

| MW/MP.6■.93■■ | Hexagonal reticular vented door |

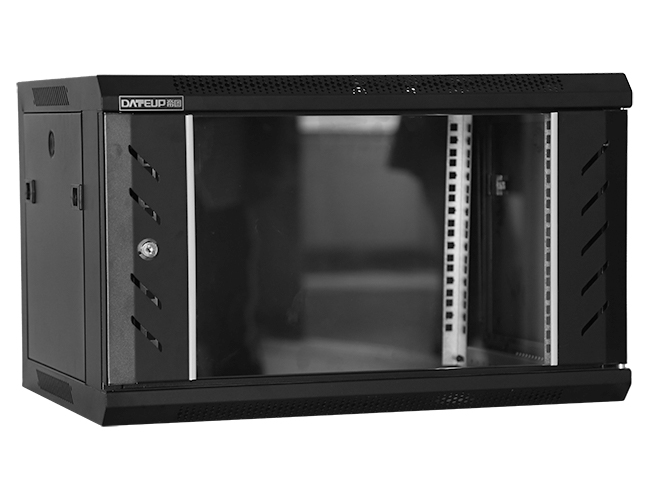

| MW/MP.6■.94■■ | Glass door (Slanted slot border) |
Coding: 1st ■: Depth | 2nd & 3rd ■■: Capacity (U)
Color: Suffix 00: Gray (RAL7035) | Suffix 01: Black (RAL9004)
