Key Features
MSS Vented Arc Series

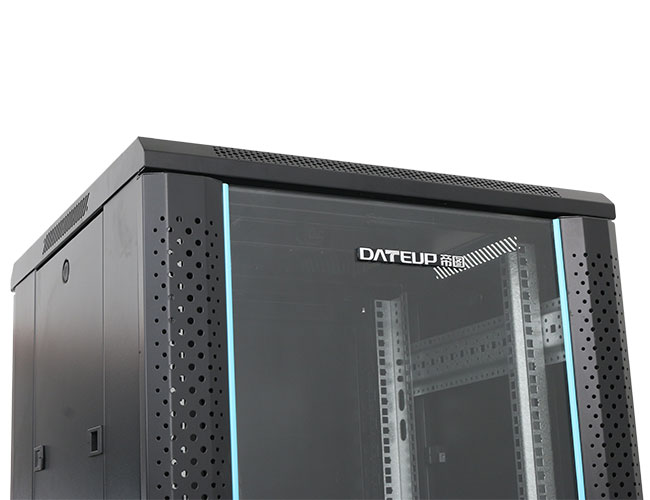

Toughened glass with vented arc border
Blue ornament strip accents

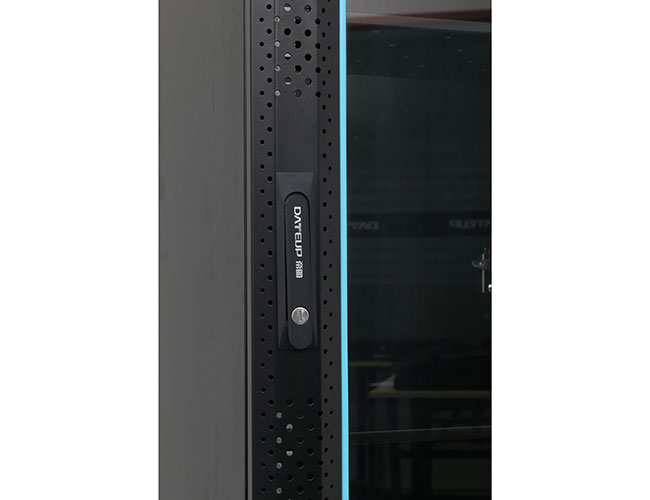

DATEUP safety lock system
Vented/Double-section rear options
1000KG Static Loading Capacity

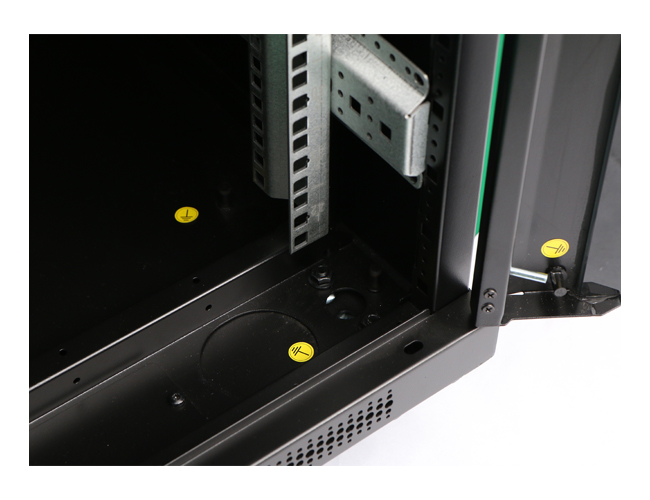

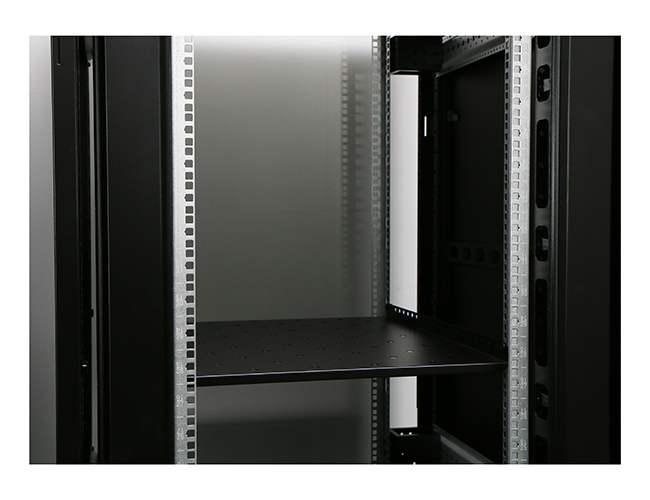

Laser U-marked mounting profiles
Technical Details
| Materials | SPCC cold rolled steel |
| Front Door | 5mm Toughened glass (Round hole vented arc border) |
| Rear Door | Plate steel / Vented plate door |
| Frame Structure | Disassembly design |
| Turning Degree | >180° |
| Protection | IP20 Rating |
Loading & Thickness
| Component Part | Thickness |
|---|---|
| Mounting Profile | 2.0 mm |
| Mounting Angle | 1.5 mm |
| Others (Frame/Side Panels) | 1.2 mm |
Total Static Loading Capacity: 1000 KG
Model Specifications
| Model No. | Configuration Description |
|---|---|
| MSS.■■■■.900■ | Vented arc glass door + Plate rear door |
| MSS.■■■■.930■ | Vented arc glass door + Double rear door |
| MSS.■■■■.980■ | Vented arc glass door + Vented rear door |
| MSS.■■■■.960■ | Vented arc glass door + Double vented rear door |
Remark: 1st ■: width | 2nd ■: depth | 3rd & 4th ■: capacity (U).
Suffix 0: Gray (RAL7035) | Suffix 1: Black (RAL9004)
