Key Features
MSD High Ventilation Series

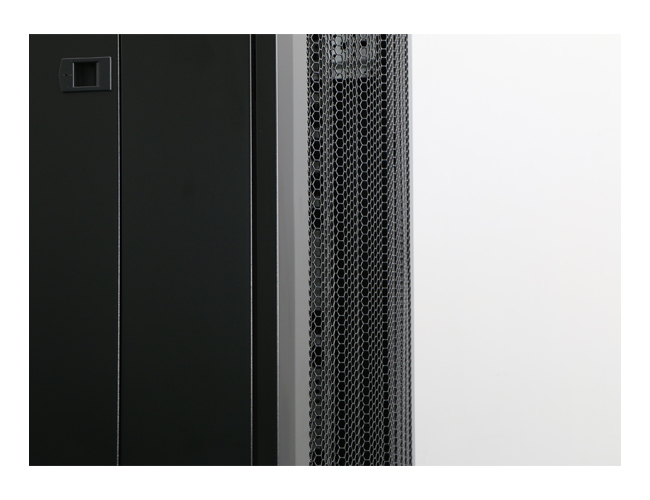

Hexagonal high-density vented arc door
Ventilation rate >80%

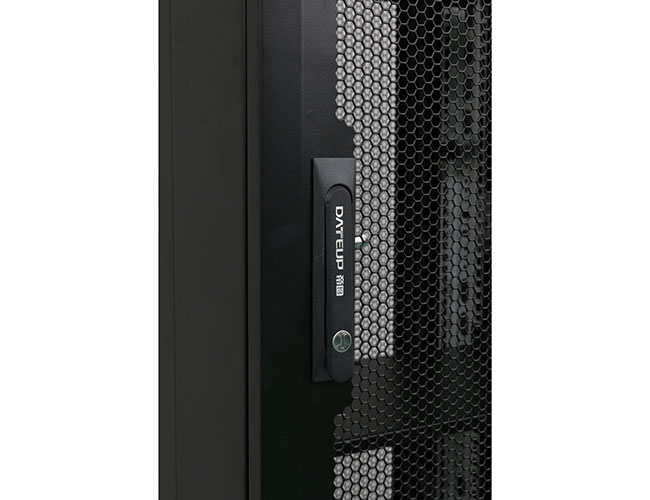

DATEUP safety lock system
Double-section rear door optional
1000KG Static Loading Capacity

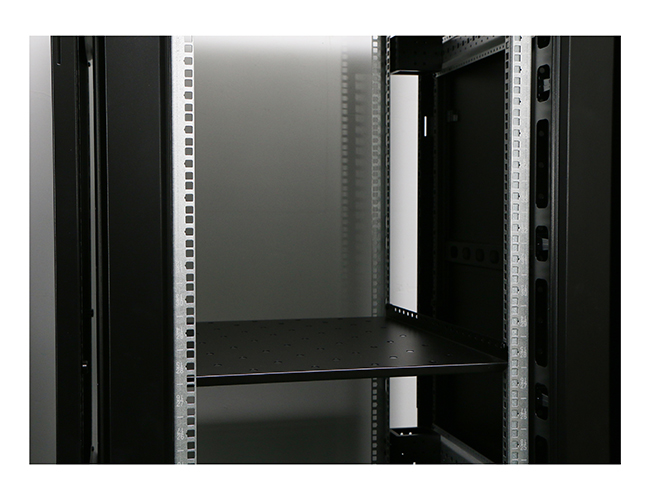

Laser U-marked mounting profiles
Technical Details
| Materials | SPCC cold rolled steel |
| Front Door | Vented arc door (Hexagonal reticular) |
| Rear Door | Vented plate door |
| Ventilation Rate | >80% |
| Frame Structure | Disassembly design |
| Protection | IP20 Rating |
Loading & Thickness
| Component Part | Thickness |
|---|---|
| Mounting Profile | 2.0 mm |
| Mounting Angle | 1.5 mm |
| Others (Frame/Side Panels) | 1.2 mm |
Total Static Loading Capacity: 1000 KG
Model Specifications
| Model No. | Door Configuration & Color |
|---|---|
| MSD.■■■■.9800 | Vented arc front / Vented plate rear (Gray) |
| MSD.■■■■.9801 | Vented arc front / Vented plate rear (Black) |
| MSD.■■■■.9600 | Vented plate front / Double-section vented rear (Gray) |
| MSD.■■■■.9601 | Vented plate front / Double-section vented rear (Black) |
Remark: 1st ■: width | 2nd ■: depth | 3rd & 4th ■: capacity (U).
